Texfast Solid Brass Spur Grommets & Washers
Texfast Solid Brass Spur Grommets & Washers
Ensure maximum hold and extreme tear resistance with Texfast Solid Brass Spur Grommets & Washers. Engineered for industrial, marine, and premium leathercraft applications, these heavy-duty grommets feature inter-locking spur teeth that grip tightly into the material—preventing slippage, twisting, and pulling out under high stress or lateral tension.
🔹 Why Choose Texfast Spur Grommets?

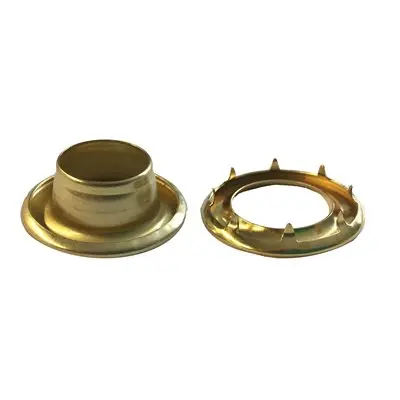

- Inter-locking Spur Design: The washer features built-in spurs (teeth) that bite directly into the leather or fabric during setting. This locks the assembly in place and prevents rotation or pull-through under heavy loads.
- 100% Solid Brass Construction: Made from premium non-ferrous solid brass, these grommets are completely rustproof and corrosion-resistant—ideal for marine, outdoor, and harsh weather conditions.
- Industrial & Heavy-Duty Performance: Recommended for heavy-duty leather, industrial canvas, truck tarps, sails, awnings, and structural webbing.
🛠️ Installation & Setting Tool Advice
To ensure a clean, secure setting without damaging the spur teeth:
- Must be set with dedicated Spur Grommet Dies. Standard flat sheet grommet dies are incompatible and will crush the spurs.
- Compatible with heavy-duty hand presses, foot presses, or manual hammer setting tools designed for spur grommets.
📏 Size Guide Available
Taille / Size | A | B | C Ø | D Ø | E Ø |
#00 | 14.40 mm | 5.60 mm | 6.80 mm | 8.30 mm | 16.35 mm |
#0 | 17.00 mm | 6.70 mm | 8.50 mm | 10.30 mm | 16.40 mm |
#1 | 20.00 mm | 7.00 mm | 10.40 mm | 11.70 mm | 20.00 mm |
#2 | 22.20 mm | 8.70 mm | 11.10 mm | 12.70 mm | 22.00 mm |
#3 | 25.20 mm | 8.80 mm | 12.70 mm | 15.00 mm | 24.40 mm |
#4 | 28.50 mm | 10.30 mm | 15.10 mm | 17.50 mm | 28.20 mm |
Display Name:
Texfast Solid Brass Spur Grommets & Washers
Specifications
| Quantity | 25, 100 |
| Size | Eyelet #0, Eyelets #1, Eyelets #2, Eyelets #3, Eyelets #4, Washers #0, Washers #1, Washers #2, Washers #3, Washers #4 |
| Color | Brass |
